Graco

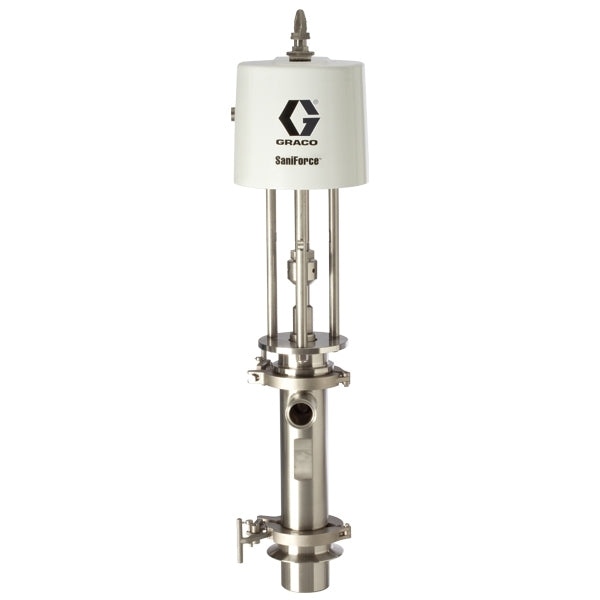

Graco SaniForce 12:1 Stubby Piston Pump — 24F625
- OEM / SKU
- 24F625
- Part category
- Piston Pumps
- Availability
- In stock: 1 available
Price
$18,590.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24F625
SaniForce 12:1 Stubby Piston Pump
Graco catalog description: SANIFORCE PISTON PUMP,12:1 PP ST
Product group: SaniForce Piston Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24F625
Documents Graco lists for part number 24F625.
- Parts / Repair Manual SaniForce 12:1 Sanitary Pumps, Instructions/Parts 3A0735P
- Brochure SaniForce 2.0 Overview Brochure 344855
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Fluid Outlet Size | 50.8 mm |
|---|---|
| Air Inlet Thread Gender | Female |
| Maximum Air Consumption | 128 SCFM |
| Maximum Air Inlet Pressure | 100 psi (6.9 bar) |
| Maximum Flow Rate | 32.18 L/min |
| Maximum Intermittent Cycle Rate | 60 CPM |
| Maximum Continuous Cycle Rate | 60 CPM |
| Maximum Working Pressure | 1450 psi (100.4 bar) |
| Model | SaniForce |
| Portable | Non-Portable |
| UPC | 633955586000 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 57.6 × 18 × 20.4 in |
| Graco Shipping Weight | 140 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
