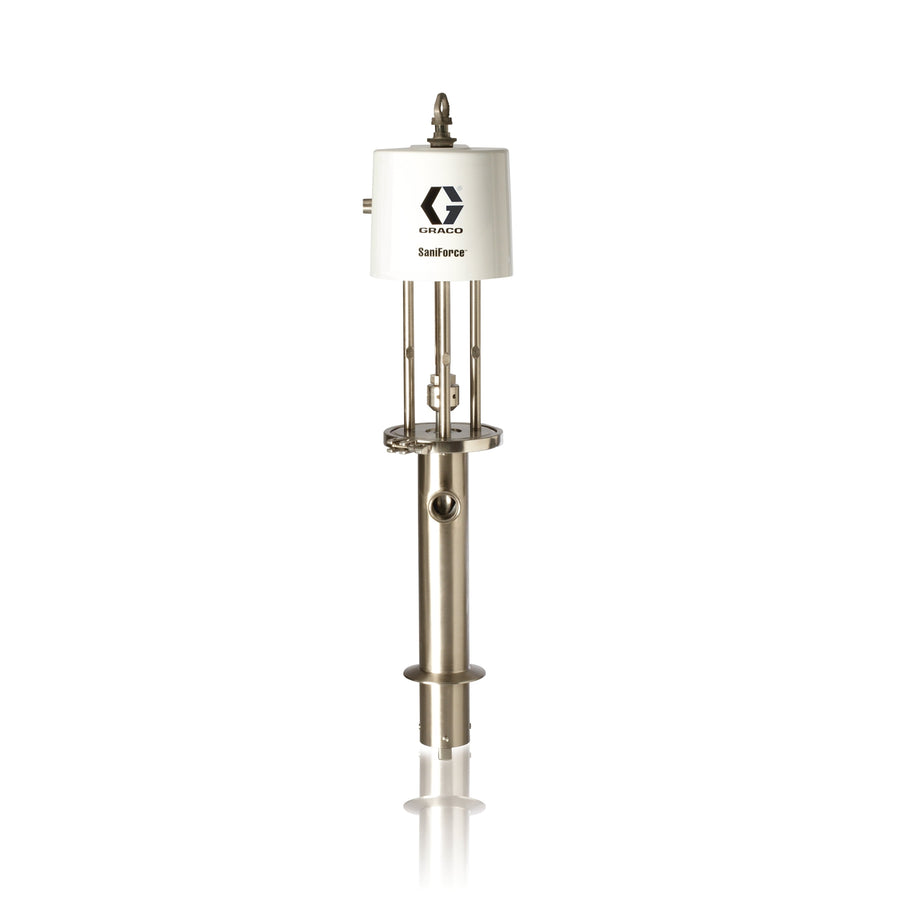

Graco 5:1 Ratio SaniForce Double Ball Stubby Piston Pump with 4 in Tri-Clamp Inlet — 24F197
- OEM / SKU
- 24F197
- Part category
- Piston Pumps
- Availability
- Est. factory ship Nov 20 – Nov 27
Price
$26,130.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24F197
5:1 Ratio SaniForce Double Ball Stubby Piston Pump with 4 in Tri-Clamp Inlet
Graco catalog description: SANIFORCE PISTON PUMP,5:1 DB ST
Product group: SaniForce Piston Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24F197
Documents Graco lists for part number 24F197.
- Parts / Repair Manual SaniForce 5:1 Sanitary Pumps, Instructions/Parts 3A0734S
- Brochure SaniForce 2.0 Overview Brochure 344855
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Air Inlet Size | 0.5 in (12.7 mm) |
|---|---|
| Fluid Outlet Size | 50.8 mm |
| Air Inlet Thread Gender | Female |
| Maximum Air Consumption | 75 SCFM |
| Maximum Air Inlet Pressure | 80 psi (5.5 bar) |
| Maximum Flow Rate | 53 L/min |
| Maximum Intermittent Cycle Rate | 60 CPM |
| Maximum Continuous Cycle Rate | 60 CPM |
| Maximum Working Pressure | 410 psi (28.3 bar) |
| Model | SaniForce |
| Portable | Non-Portable |
| UPC | 633955604162 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 69.6 × 16.8 × 20.4 in |
| Graco Shipping Weight | 114 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
