Graco

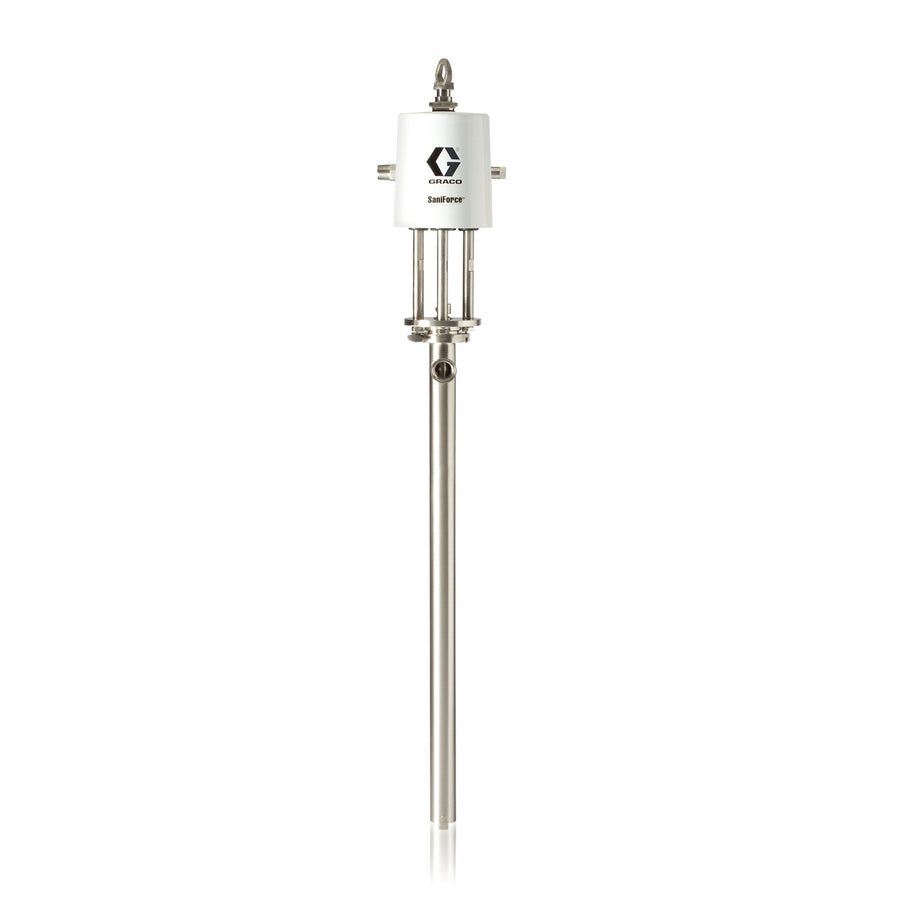

Graco 6:1 Ratio SaniForce Drum Length Double Ball Piston Pump with Bun-N, Nylon, Nitrile & Polychloroprene Packings — 24E840
- OEM / SKU
- 24E840
- Part category
- Piston Pumps
- Availability
- Est. factory ship Nov 20 – Nov 27
Price
$10,560.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24E840
6:1 Ratio SaniForce Drum Length Double Ball Piston Pump with Bun-N, Nylon, Nitrile & Polychloroprene Packings
Graco catalog description: SANIFORCE PISTON PUMP,6:1 DB DL
Product group: SaniForce Piston Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24E840
Documents Graco lists for part number 24E840.
- Parts / Repair Manual SaniForce™ 6:1 Sanitary Pumps, Instructions and Parts 3A0733R
- Brochure SaniForce 2.0 Overview Brochure 344855
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Air Inlet Size | 0.5 in (12.7 mm) |
|---|---|
| Fluid Outlet Size | 38.1 mm |
| Air Inlet Thread Gender | Female |
| Maximum Air Consumption | 29 SCFM |
| Maximum Air Inlet Pressure | 100 psi (6.9 bar) |
| Maximum Flow Rate | 15.14 L/min |
| Maximum Intermittent Cycle Rate | 60 CPM |
| Maximum Continuous Cycle Rate | 60 CPM |
| Maximum Working Pressure | 650 psi (44.8 bar) |
| Model | SaniForce |
| Portable | Non-Portable |
| UPC | 633955458840 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 64.8 × 15.6 × 15.6 in |
| Graco Shipping Weight | 56 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
