Graco

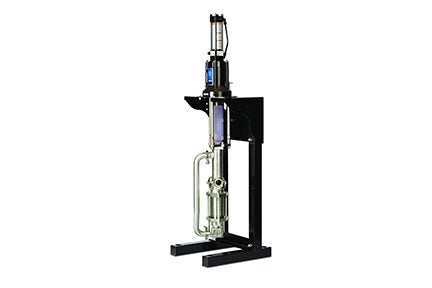

Graco Viscount II 1900/3100 Bin Supply Piston Pumps for Ink Applications — 246938
- OEM / SKU
- 246938
- Part category
- Piston Pumps
- Availability
- Est. factory ship Dec 19 – Dec 26
Price
$18,320.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 246938
Viscount II 1900/3100 Bin Supply Piston Pumps for Ink Applications
Graco catalog description: VISCOUNT II PUMP,19:1 8CM
Product group: Ink Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 246938
Documents Graco lists for part number 246938.
- Brochure Process Equipment Brochure 300570
Specifications
| Fluid Outlet Size | 25.4 mm |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Maximum Flow Rate | 11.4 L/min |
| Maximum Hydraulic Fluid Inlet Pressure | 1500 psi (103 bar, 10300 kPa) |
| Maximum Working Pressure | 2300 psi (159 bar) |
| Model | Viscount |
| Maximum Operating Temperature | 180 °F (82 °C) |
| UPC | 633955033009 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 61.2 × 15.6 × 16.8 in |
| Graco Shipping Weight | 226 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
