Graco

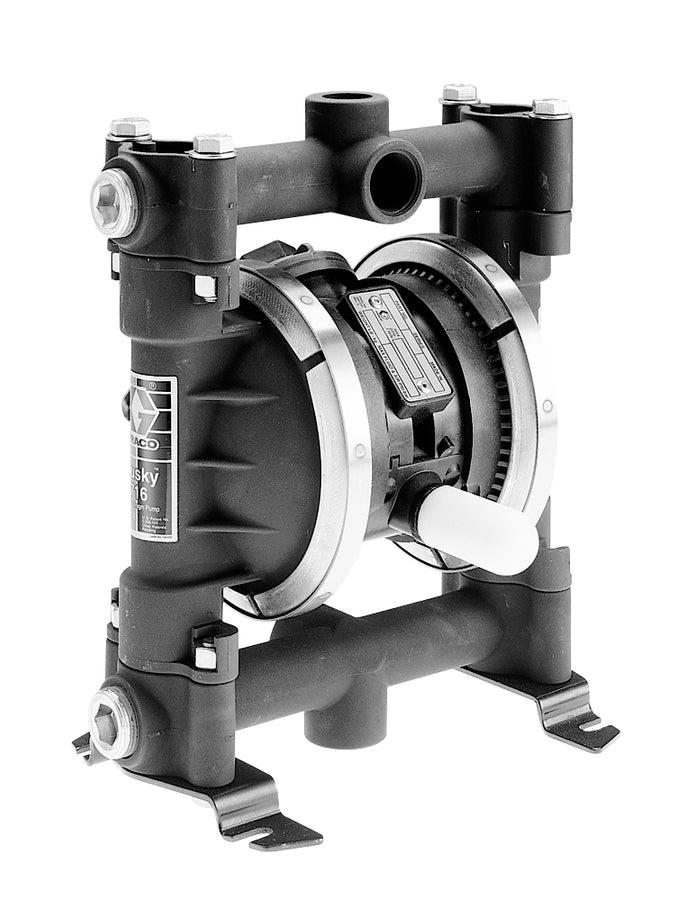

Graco Husky 716 55 gal (208 liter) AL Transfer Pump Package with AC Seats, PTFE Balls, PTFE Diaphragms & AL Tube — 233056
- OEM / SKU
- 233056
- Part category
- Diaphragm Pump Packages
- Availability
- Est. factory ship Pending
Price
$1,695.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 233056
Husky 716 55 gal (208 liter) AL Transfer Pump Package with AC Seats, PTFE Balls, PTFE Diaphragms & AL Tube
Graco catalog description: KIT,ACCY, DRUM PKG
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 233056
Documents Graco lists for part number 233056.
- Parts / Repair Manual Husky 515/Husky 716 Drum Pump Kits and Packages, Instructions/Parts 309116
Specifications
| Fluid Outlet Thread Gender | Female |
|---|---|
| Fluid Outlet Size | 19.05 mm |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 3/4 in (19.05 mm) |
| Includes | Bung Base, Aluminum Tube |
| Maximum Air Pressure | 100 psi (7 bar) |
| Maximum Cycle Rate | 400 CPM |
| Maximum Fluid Pressure | 100 psi (7 bar) |
| Model | Husky |
| Number of Pieces | 2 |
| Maximum Operating Temperature | 225 °F |
| Maximum Solid Size | 0.094 in (2.3876 mm, 0.2388 cm) |
| UPC | 633955933552 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
