Graco

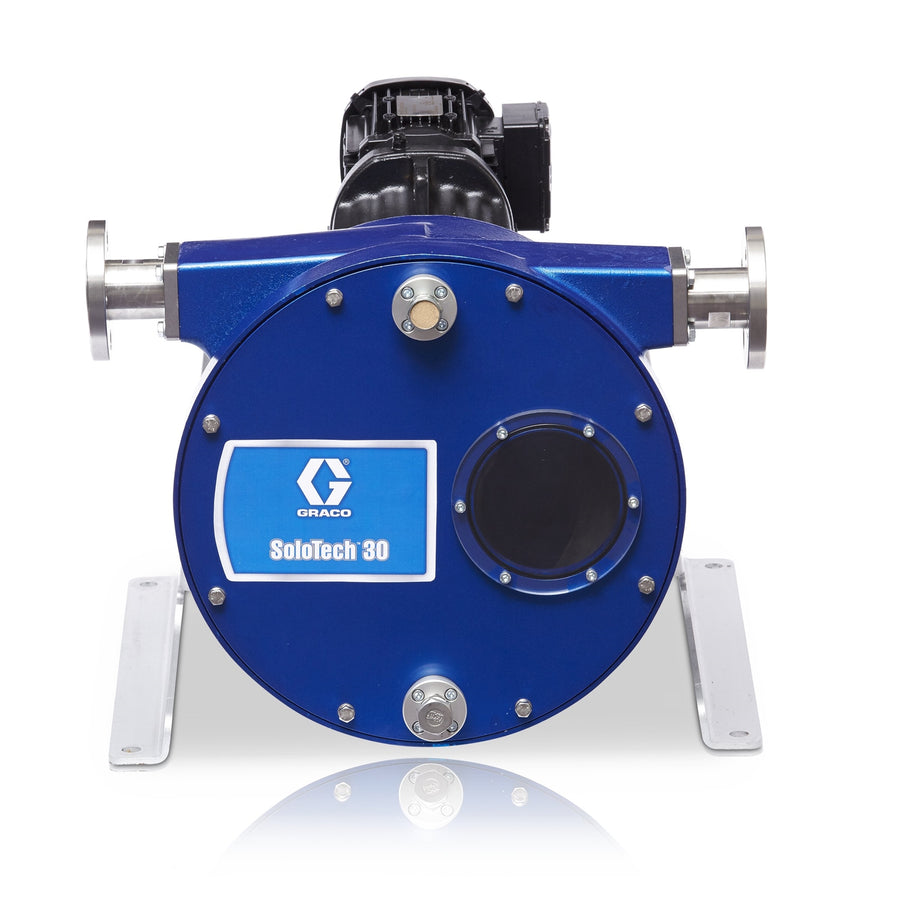

Graco SoloTech™ i30 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor — 19Z113
- OEM / SKU
- 19Z113
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$14,270.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19Z113
SoloTech™ i30 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor
Graco catalog description: SOLOTECH ST30 PUMP,HAC/NR/SS/A1/A1/0/
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19Z113
Documents Graco lists for part number 19Z113.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure SoloTech Brochure 345080
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
|---|---|
| Maximum Flow Rate | 59.8 L/min |
| Model | SoloTech |
| Inlet Size | 1-1/4 in (32 mm, 3.2 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 1.2 in (30 mm, 3 cm) |
| Gear Ratio | 19.5:1 |
| Flow Rate | 16 GPM |
| Minimum Flow Rate | 2.675 GPM |
| Volume Per Cycle | 1.8 gal (7 L) |
| Outlet Size | 4.92 in (125 mm, 12.5 cm) |
| Overall Height | 30.3 in (770 mm, 77 cm) |
| Overall Length | 26.5 in (673 mm, 67 cm) |
| Power Rating | 3 HP (2237 W, 2.24 kW) |
| Pump Speed | 15-91 RPM |
| Series | i30 |
| Overall Width | 23.3 in (592 mm, 59 cm) |
| UPC | 755652327417 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 47 × 34.25 × 27 in |
| Graco Shipping Weight | 366 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
