Graco

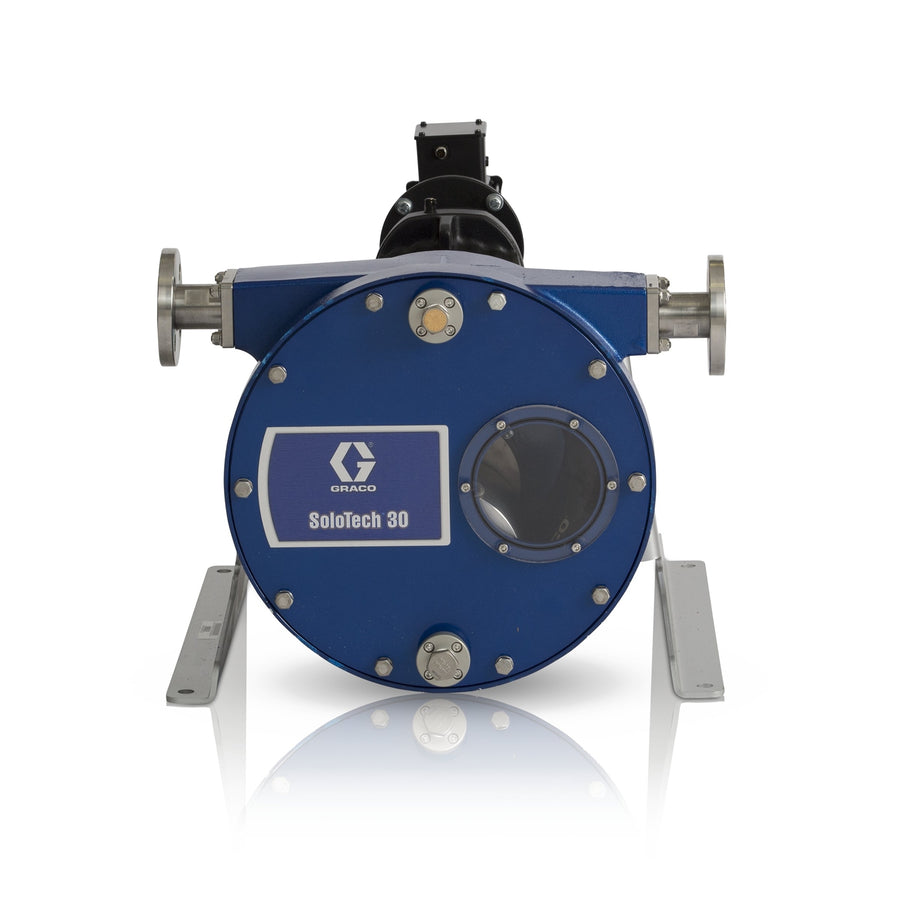

Graco SoloTech™ i30 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC Motor — 19Z100
- OEM / SKU
- 19Z100
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$15,820.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19Z100
SoloTech™ i30 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC Motor
Graco catalog description: SOLOTECH ST30 PUMP,MPM/BN/SS/A1/A1/0/
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19Z100
Documents Graco lists for part number 19Z100.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure SoloTech Brochure 345080
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
|---|---|
| Maximum Flow Rate | 59.8 L/min |
| Model | SoloTech |
| Inlet Size | 1-1/4 in (32 mm, 3.2 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 1.2 in (30 mm, 3 cm) |
| Gear Ratio | 36.61:1 |
| Flow Rate | 16.025 GPM |
| Minimum Flow Rate | 0.43 GPM |
| Volume Per Cycle | 1.8 gal (7 L) |
| Outlet Size | 4.92 in (125 mm, 12.5 cm) |
| Overall Height | 18.5 in (470 mm, 47 cm) |
| Overall Length | 40.4 in (1026 mm, 103 cm) |
| Power Rating | 300 HP (223710 W, 224 kW) |
| Pump Speed | 2-92 RPM |
| Series | i30 |
| Overall Width | 23.3 in (592 mm, 59 cm) |
| UPC | 755652327288 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 37 × 47 × 26.5 in |
| Graco Shipping Weight | 321 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
