Graco

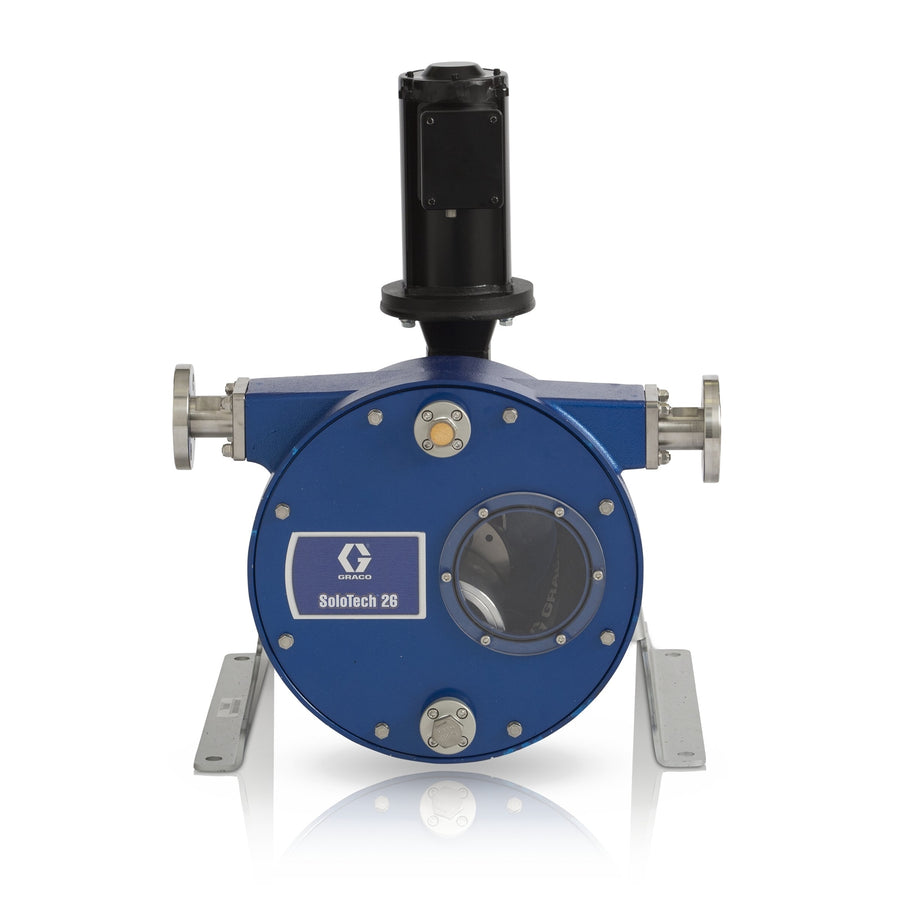

Graco SoloTech™ i26 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC Motor — 19Z070
- OEM / SKU
- 19Z070
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$13,130.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19Z070
SoloTech™ i26 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC Motor
Graco catalog description: SOLOTECH ST26 PUMP,I26-MPM-BN-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19Z070
Documents Graco lists for part number 19Z070.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure SoloTech Brochure 345080
Specifications
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
|---|---|
| Maximum Flow Rate | 37.1 L/min |
| Model | SoloTech |
| Inlet Size | 1 in (25 mm, 2.5 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 1 in (26 mm, 2.6 cm) |
| Gear Ratio | 38.23:1 |
| Flow Rate | 10.2 GPM |
| Minimum Flow Rate | 0.257 GPM |
| Volume Per Cycle | 0.109 gal (0.413 L) |
| Outlet Size | 1 in (25 mm, 2.5 cm) |
| Overall Height | 16 in (406 mm, 41 cm) |
| Overall Length | 36.8 in (935 mm, 93 cm) |
| Power Rating | 350 HP (260995 W, 261 kW) |
| Pump Speed | 2-94 RPM |
| Series | i26 |
| Overall Width | 21.7 in (551 mm, 55 cm) |
| UPC | 755652326991 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 28.1 × 33.5 × 49 in |
| Graco Shipping Weight | 255 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
