Graco

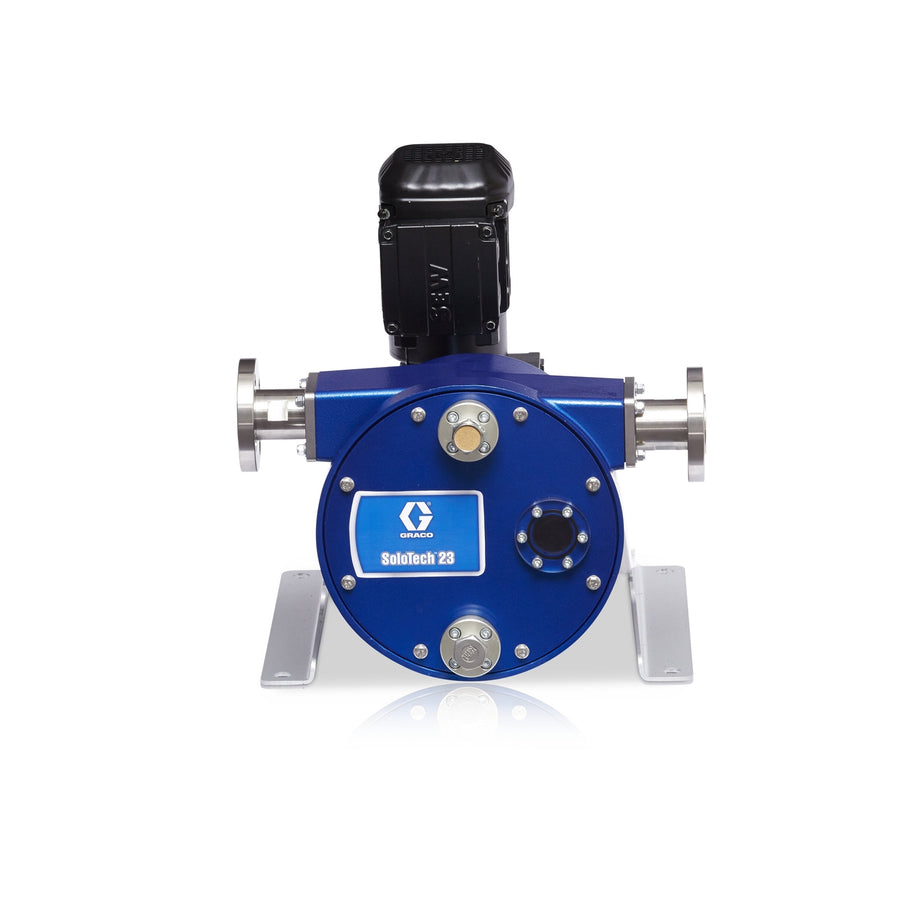

Graco SoloTech™ i23 High Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor — 19Z060
- OEM / SKU
- 19Z060
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$8,110.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19Z060
SoloTech™ i23 High Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor
Graco catalog description: SOLOTECH ST23 PUMP,I23-HAC-BN-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19Z060
Documents Graco lists for part number 19Z060.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure SoloTech Brochure 345080
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
|---|---|
| Maximum Flow Rate | 17 L/min |
| Model | SoloTech |
| Inlet Size | 1 in (25 mm, 2.5 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 0.91 in (23 mm, 2.3 cm) |
| Gear Ratio | 19.13:1 |
| Flow Rate | 4.705 GPM |
| Minimum Flow Rate | 0.785 GPM |
| Volume Per Cycle | 0.054 gal (0.204 L) |
| Outlet Size | 4.25 in (108 mm, 10.8 cm) |
| Overall Height | 20.5 in (521 mm, 52 cm) |
| Overall Length | 19.8 in (503 mm, 50 cm) |
| Pump Speed | 16-94 RPM |
| Series | i23 |
| Overall Width | 17.2 in (437 mm, 44 cm) |
| UPC | 755652326892 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 32.5 × 29.5 in |
| Graco Shipping Weight | 146 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
