Graco

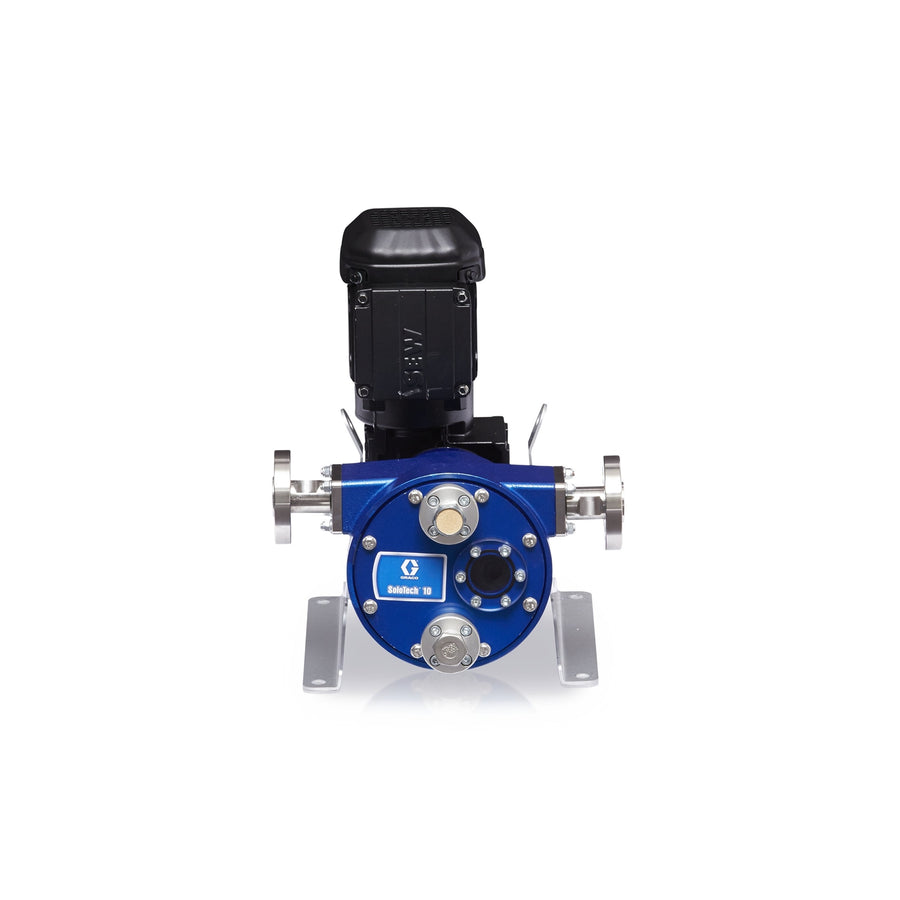

Graco SoloTech™ i10 Mid Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor — 19Z017
- OEM / SKU
- 19Z017
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Dec 5 – Dec 12
Price
$6,400.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19Z017
SoloTech™ i10 Mid Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor
Graco catalog description: SOLOTECH ST10 PUMP,I10-MAC-NR-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19Z017
Documents Graco lists for part number 19Z017.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure SoloTech Brochure 345080
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
|---|---|
| Maximum Flow Rate | 2.5 L/min |
| Model | SoloTech |
| Inlet Size | 3/8 in (9.5 mm, 0.95 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 0.4 in (10 mm, 1 cm) |
| Gear Ratio | 48:1 |
| Flow Rate | 0.2625 GPM |
| Minimum Flow Rate | 0.044 GPM |
| Volume Per Cycle | 7 gal (0.026 L) |
| Outlet Size | 3.54 in (90 mm, 9 cm) |
| Overall Height | 17.3 in (439 mm, 44 cm) |
| Overall Length | 16.2 in (411 mm, 41 cm) |
| Pump Speed | 6-38 RPM |
| Series | i10 |
| Overall Width | 13 in (330 mm, 33 cm) |
| UPC | 755652324652 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 24.5 × 20 in |
| Graco Shipping Weight | 72.5 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
