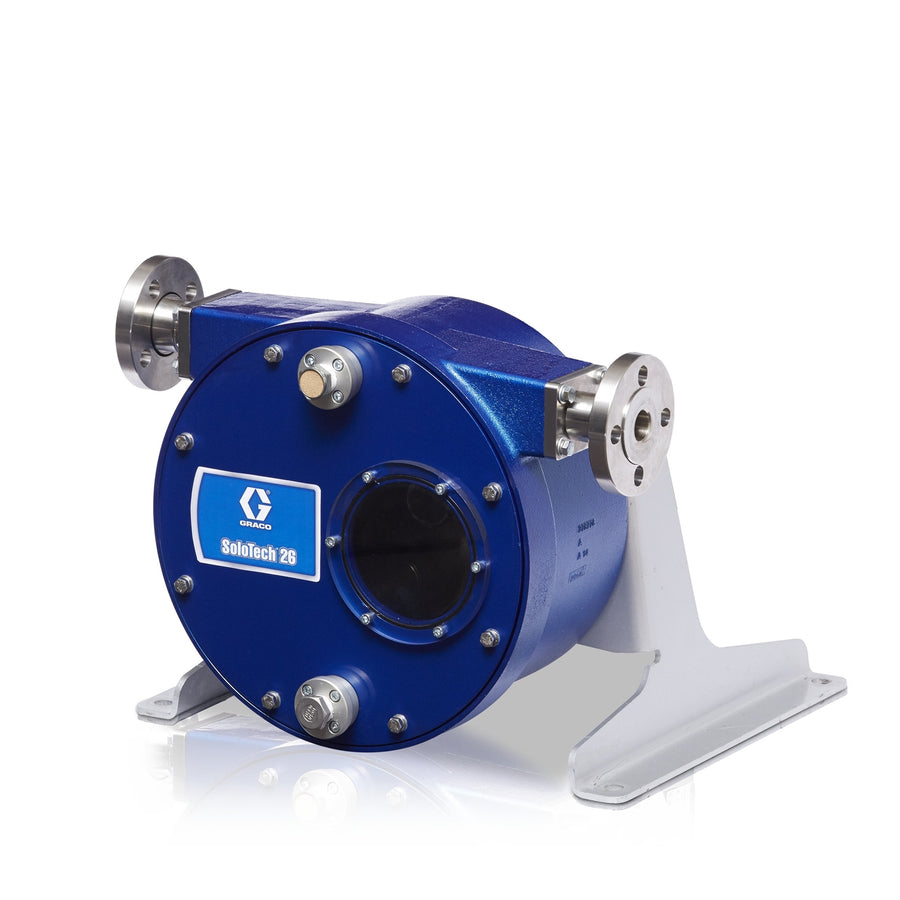

Graco SoloTech™ i26 EPDM Peristaltic Hose Pump — 19X131
- OEM / SKU
- 19X131
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$11,160.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19X131
SoloTech™ i26 EPDM Peristaltic Hose Pump
Graco catalog description: SOLOTECH ST26 PUMP,I26-MC-EP-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
|---|---|
| Maximum Flow Rate | 37.1 L/min |
| Model | SoloTech |
| Inlet Size | 1 in (25 mm, 2.5 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 1 in (26 mm, 2.6 cm) |
| Gear Ratio | 51.3:1 |
| Flow Rate | 4.175 GPM |
| Minimum Flow Rate | 0.695 GPM |
| Volume Per Cycle | 0.109 gal (0.413 L) |
| Outlet Size | 1 in (25 mm, 2.5 cm) |
| Overall Height | 16.5 in (419 mm, 42 cm) |
| Pump Speed | 6-38 RPM |
| Series | i26 |
| Overall Width | 21.7 in (551 mm, 55 cm) |
| UPC | 755652326151 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 23.25 × 37.5 × 31 in |
| Graco Shipping Weight | 240 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
