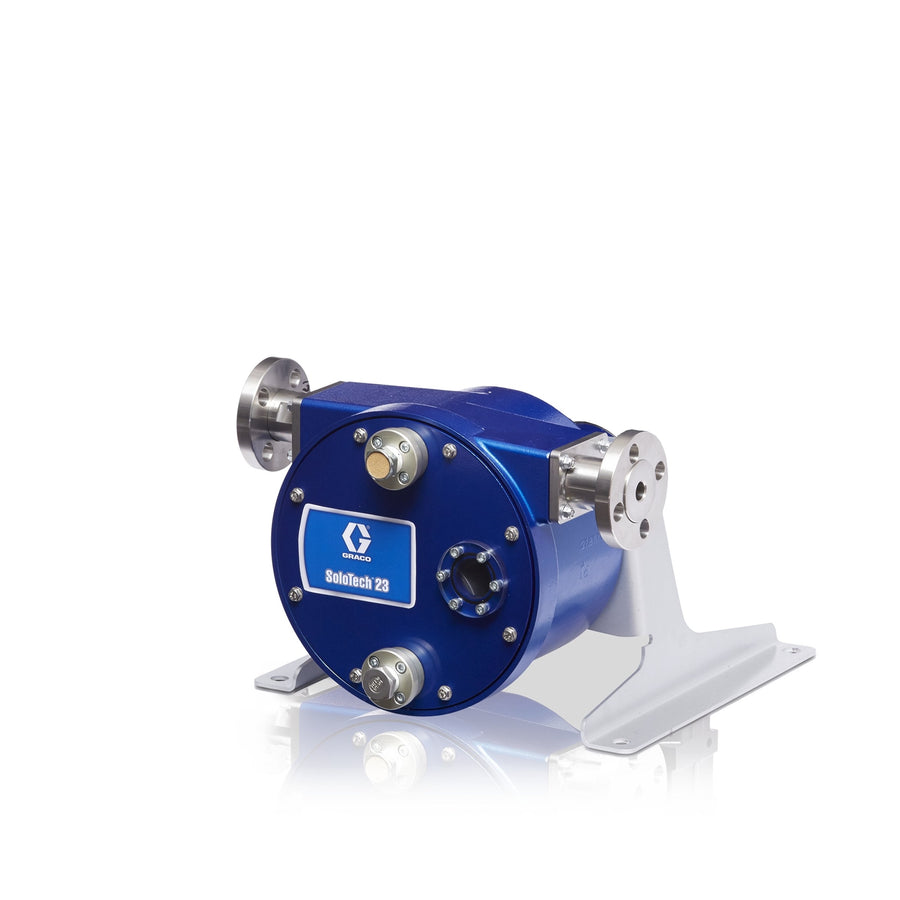

Graco SoloTech™ i23 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & NEMA Connection — 19X075
- OEM / SKU
- 19X075
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 6 – Jan 13
Price
$8,260.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19X075
SoloTech™ i23 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & NEMA Connection
Graco catalog description: SOLOTECH ST23 PUMP,I23-HN-CS-PV-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Flow Rate | 4.705 GPM |
|---|---|
| Gear Ratio | 18.24:1 |
| Hose Diameter | 0.91 in (23 mm, 2.3 cm) |
| Inlet Size | 1 in (25 mm, 2.5 cm) |
| Maximum Flow Rate | 17 L/min |
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
| Maximum Storage Temperature | 104 °F (40 °C) |
| Minimum Flow Rate | 0.785 GPM |
| Minimum Storage Temperature | 14 °F (-10 °C) |
| Model | SoloTech |
| Outlet Size | 4.25 in (108 mm, 10.8 cm) |
| Overall Width | 17.2 in (437 mm, 44 cm) |
| Pump Speed | 2-94 RPM |
| Series | i23 |
| Volume Per Cycle | 0.054 gal (0.204 L) |
| Housing Material | Powder Coated Aluminum |
| UPC | 755652325604 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 32 × 19 × 29.5 in |
| Graco Shipping Weight | 130 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
