Graco

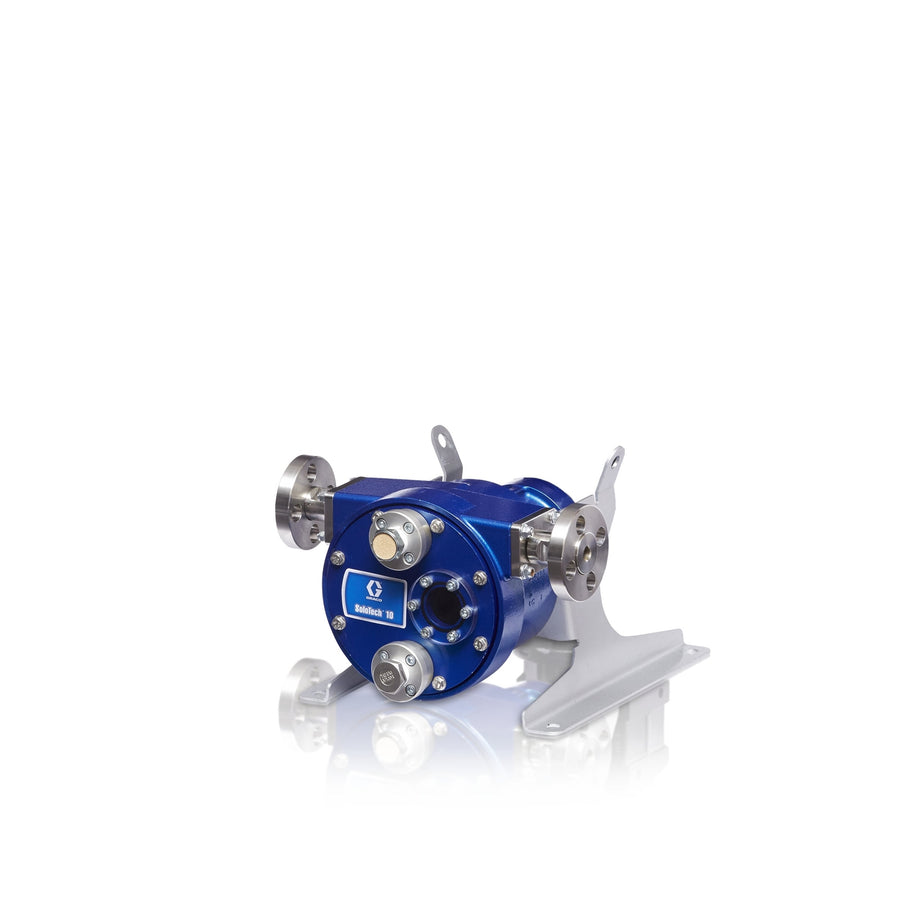

Graco SoloTech™ i10 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, Hastelloy-C Barb & NEMA Connection — 19X028
- OEM / SKU
- 19X028
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$7,290.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19X028
SoloTech™ i10 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, Hastelloy-C Barb & NEMA Connection
Graco catalog description: SOLOTECH ST10 PUMP,I10-HN-CS-HS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Flow Rate | 0.646 GPM |
|---|---|
| Gear Ratio | 18.24:1 |
| Hose Diameter | 0.4 in (10 mm, 1 cm) |
| Inlet Size | 3/8 in (9.5 mm, 0.95 cm) |
| Maximum Flow Rate | 2.5 L/min |
| Maximum Fluid Pressure | 125 psi (9 bar, 900 kPa) |
| Maximum Storage Temperature | 104 °F (40 °C) |
| Minimum Flow Rate | 0.108 GPM |
| Minimum Storage Temperature | 14 °F (-10 °C) |
| Model | SoloTech |
| Outlet Size | 3.54 in (90 mm, 9 cm) |
| Overall Height | 18.2 in (462 mm, 46 cm) |
| Overall Length | 16.2 in (411 mm, 41 cm) |
| Overall Width | 13 in (330 mm, 33 cm) |
| Pump Speed | 15-92 RPM |
| Series | i10 |
| Volume Per Cycle | 0.007 gal (0.026 L) |
| Housing Material | Powder Coated Aluminum |
| UPC | 755652325130 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
