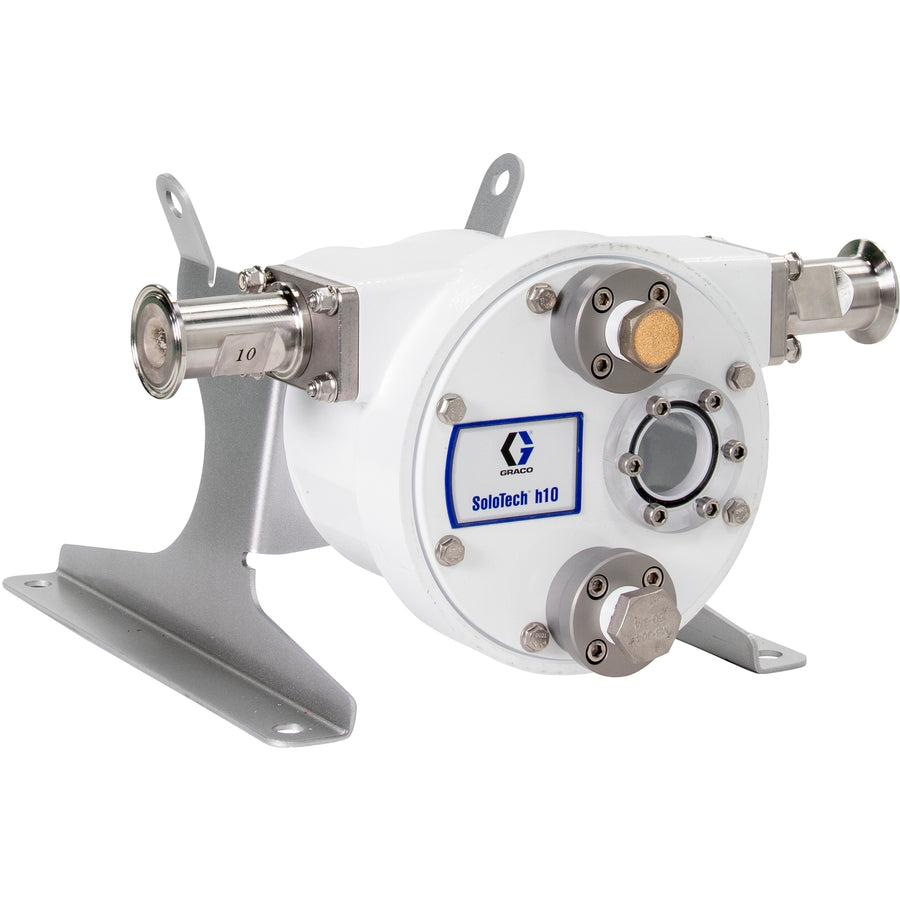

Graco SoloTech™ h10 Peristaltic Pump, No Motor or gear reducer, FDA Nitrile Hose, SST Sanitary Clamp Barb — 19D111
- OEM / SKU
- 19D111
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Dec 5 – Dec 12
Price
$6,490.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19D111
SoloTech™ h10 Peristaltic Pump, No Motor or gear reducer, FDA Nitrile Hose, SST Sanitary Clamp Barb
Graco catalog description: SOLOTECH ST10 PUMP,H10-0-FG-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19D111
Documents Graco lists for part number 19D111.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
Specifications
| Gear Ratio | 0 |
|---|---|
| Hose Diameter | 0.39 in (10 mm, 1 cm) |
| Inlet Size | 1 in (25.4 mm, 2.5 cm) |
| Maximum Fluid Pressure | 125 psi (8.6 bar, 861.8 kPa) |
| Minimum Flow Rate | 0 GPM |
| Model | SoloTech |
| Outlet Size | 1 in (25.4 mm, 2.5 cm) |
| Overall Height | 7 in (177.8 mm, 17.78 cm) |
| Overall Width | 13 in (330 mm, 33 cm) |
| Series | h10 |
| Housing Material | Powder Coated Aluminum |
| Lubricant Material | FDA Glycerin |
| Minimum Pump Speed | 0 RPM |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Minimum Temperature | 14 °F (-10 °C) |
| UPC | 769946213737 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
