Graco

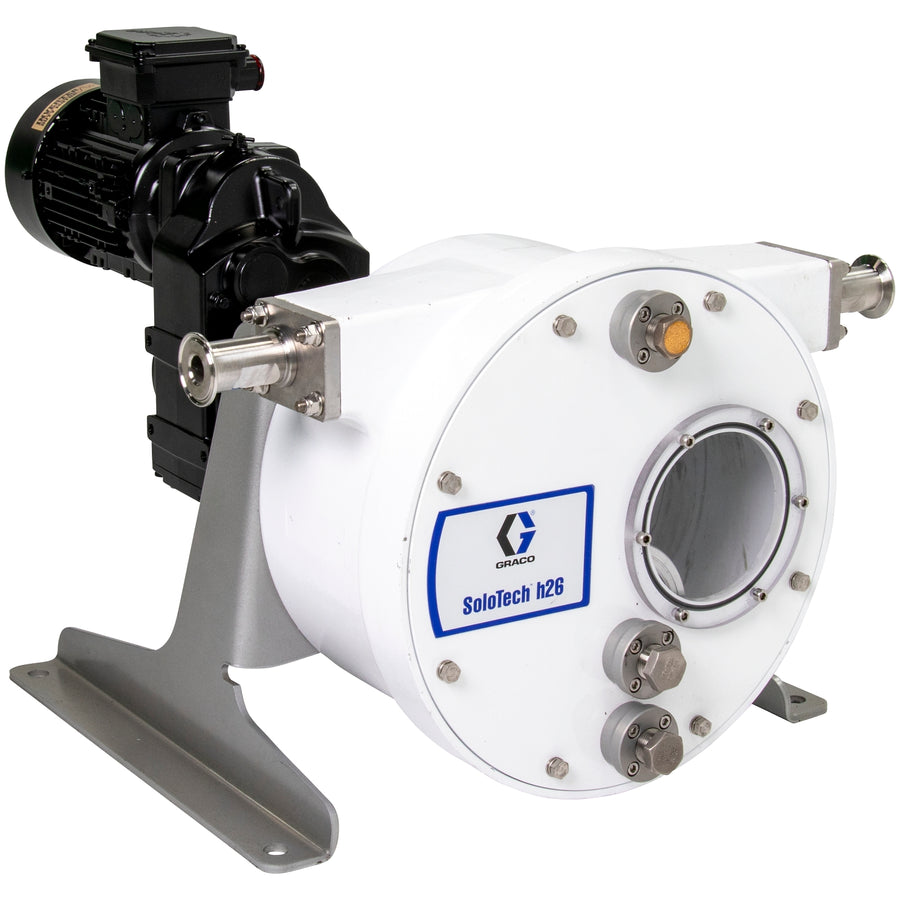

Graco SoloTech™ h26 Peristaltic Pump, 0.3 hp AC motor with low-speed gear reducer, .23-.1.4 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb — 19D098
- OEM / SKU
- 19D098
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$12,060.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19D098
SoloTech™ h26 Peristaltic Pump, 0.3 hp AC motor with low-speed gear reducer, .23-.1.4 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb
Graco catalog description: SOLOTECH ST26 PUMP,H26-LAC-FG-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19D098
Documents Graco lists for part number 19D098.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Gear Ratio | 159.1:1 |
|---|---|
| Hose Diameter | 0.98 in (26 mm, 2.5 cm) |
| Inlet Size | 2 in (50.8 mm, 5.1 cm) |
| Maximum Flow Rate | 4.67 L/min (74.04 GPH, 280.27 L/h) |
| Maximum Fluid Pressure | 125 psi (8.6 bar, 861.8 kPa) |
| Minimum Flow Rate | 0.21 GPM |
| Model | SoloTech |
| Outlet Size | 2 in (50.8 mm, 5.1 cm) |
| Overall Height | 15.5 in (393.7 mm, 39.37 cm) |
| Overall Length | 33 in (838.2 mm, 83.8 cm) |
| Overall Width | 21.7 in (551 mm, 55 cm) |
| Power Rating | 0.3 HP (0.25 kW) |
| Series | h26 |
| Housing Material | Powder Coated Aluminum |
| Lubricant Material | FDA Glycerin |
| Maximum Pump Speed | 11.32 RPM |
| Minimum Pump Speed | 1.89 RPM |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Minimum Temperature | 14 °F (-10 °C) |
| UPC | 769946213607 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
