Graco

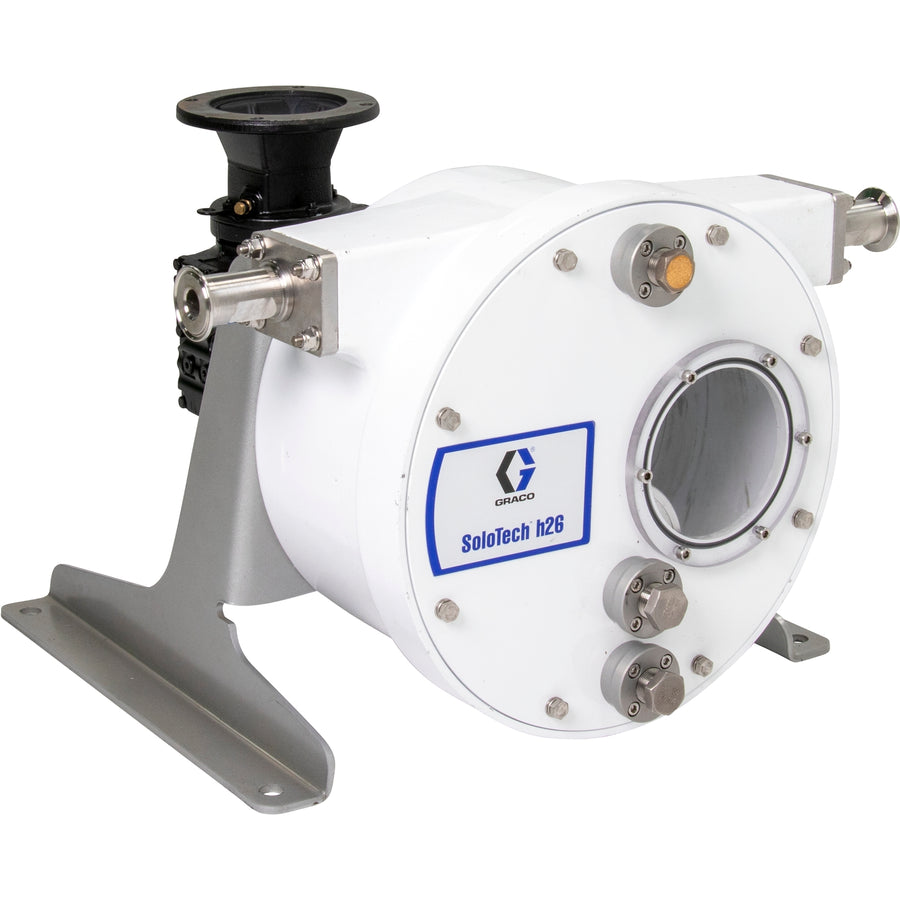

Graco SoloTech™ h26 Peristaltic Pump, Med-speed gear reducer no motor, NEMA, FDA Nitrile Hose, SST Sanitary Clamp Barb — 19D097
- OEM / SKU
- 19D097
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$12,060.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19D097
SoloTech™ h26 Peristaltic Pump, Med-speed gear reducer no motor, NEMA, FDA Nitrile Hose, SST Sanitary Clamp Barb
Graco catalog description: SOLOTECH ST26 PUMP,H26-HAC-FG-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19D097
Documents Graco lists for part number 19D097.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure 3H0005EN-C Solotech Brochure 3H0005
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Maximum Operating Temperature | 104 °F (40 °C) |
|---|---|
| Maximum Fluid Pressure | 125 psi (8.6 bar, 861.8 kPa) |
| Maximum Flow Rate | 38 L/min (2282.6 L/h, 603 GPH) |
| Model | SoloTech |
| Lubricant Material | FDA Glycerin |
| Inlet Size | 2 in (50.8 mm, 5.1 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 0.98 in (26 mm, 2.5 cm) |
| Gear Ratio | 19.52:1 |
| Maximum Pump Speed | 92.2 RPM |
| Minimum Flow Rate | 1.68 GPM |
| Minimum Pump Speed | 15.37 RPM |
| Outlet Size | 2 in (50.8 mm, 5.1 cm) |
| Overall Height | 16.5 in (419 mm, 42 cm) |
| Overall Length | 36.1 in (916.9 mm, 91.7 cm) |
| Series | h26 |
| Overall Width | 21.7 in (551 mm, 55 cm) |
| Power Rating | 2 HP (1.5 kW) |
| UPC | 769946213591 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 41 × 35 × 29.5 in |
| Graco Shipping Weight | 268 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
