Graco

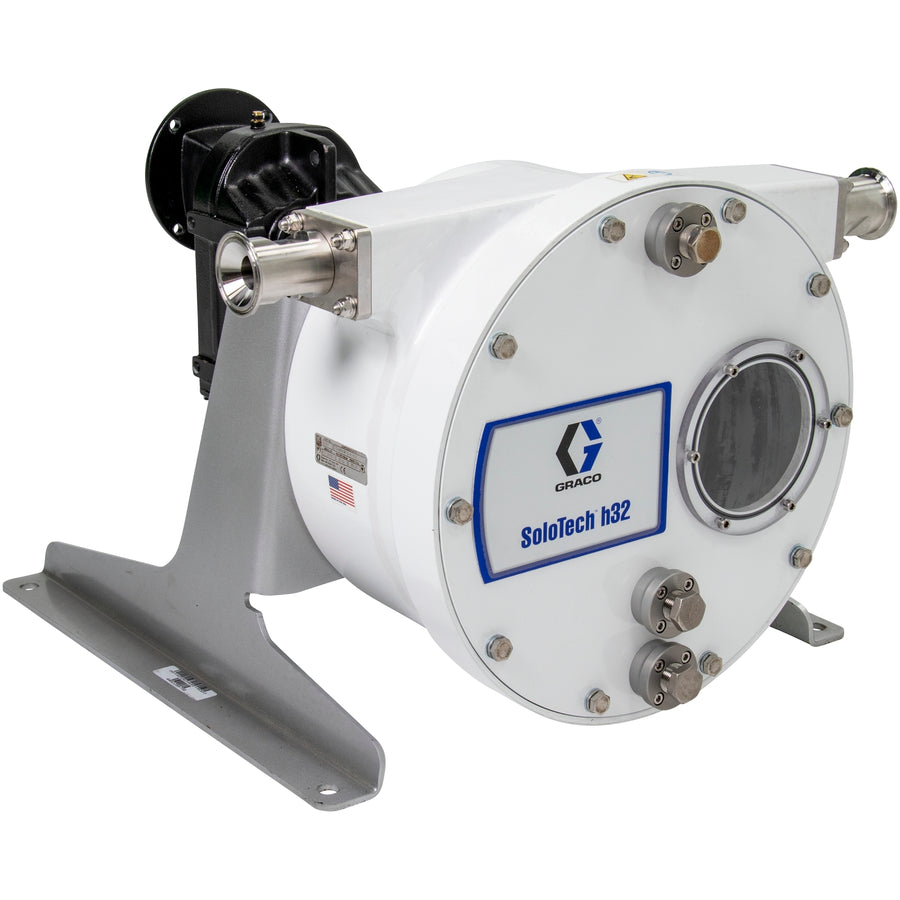

Graco SoloTech™ h32 Peristaltic Pump, High-speed gear reducer no motor, NEMA, FDA Nitrile Hose, SST Sanitary Clamp Barb — 19D086
- OEM / SKU
- 19D086
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 6 – Jan 13
Price
$14,990.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19D086
SoloTech™ h32 Peristaltic Pump, High-speed gear reducer no motor, NEMA, FDA Nitrile Hose, SST Sanitary Clamp Barb
Graco catalog description: SOLOTECH ST32 PUMP,H32-HN-FG-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19D086
Documents Graco lists for part number 19D086.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure 3H0005EN-C Solotech Brochure 3H0005
Specifications
| Maximum Operating Temperature | 104 °F (40 °C) |
|---|---|
| Maximum Fluid Pressure | 125 psi (8.6 bar, 861.8 kPa) |
| Model | SoloTech |
| Lubricant Material | FDA Glycerin |
| Inlet Size | 2 in (50.8 mm, 5.08 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 1.26 in (32 mm, 3.2 cm) |
| Gear Ratio | 24.9:1 |
| Minimum Flow Rate | 0 GPM |
| Minimum Pump Speed | 0 RPM |
| Outlet Size | 2 in (50.8 mm, 5.08 cm) |
| Overall Length | 26.5 in (673.1 mm, 67.31 cm) |
| Series | h32 |
| Overall Width | 23.3 in (592 mm, 59 cm) |
| UPC | 769946205244 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 42 × 36 × 29.5 in |
| Graco Shipping Weight | 302 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
