Graco

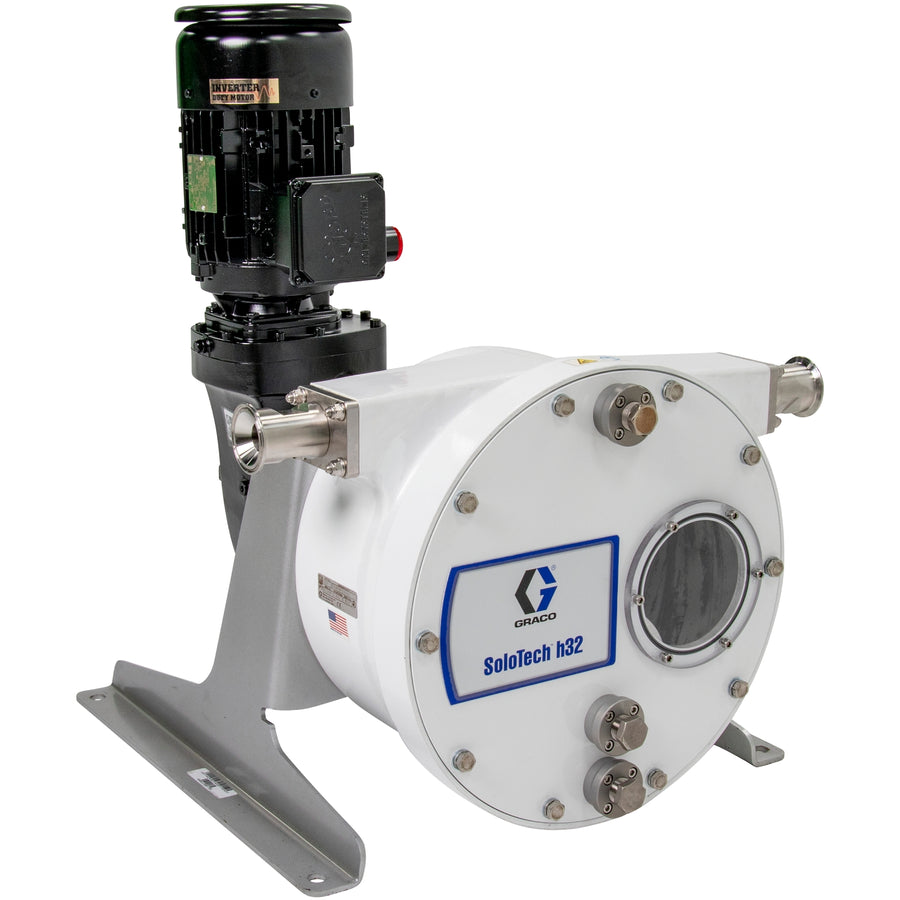

Graco SoloTech™ h32 Peristaltic Pump, 0.5 hp AC motor with low-speed gear reducer, .37-2.2 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb — 19D082
- OEM / SKU
- 19D082
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 6 – Jan 13
Price
$14,660.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19D082
SoloTech™ h32 Peristaltic Pump, 0.5 hp AC motor with low-speed gear reducer, .37-2.2 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb
Graco catalog description: SOLOTECH ST32 PUMP,H32-LAC-FG-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19D082
Documents Graco lists for part number 19D082.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Gear Ratio | 159.1:1 |
|---|---|
| Hose Diameter | 1.26 in (32 mm, 3.2 cm) |
| Inlet Size | 2 in (50.8 mm, 5.08 cm) |
| Maximum Flow Rate | 8.44 L/min (133.8 GPH, 506.49 L/h) |
| Maximum Fluid Pressure | 125 psi (8.6 bar, 861.8 kPa) |
| Minimum Flow Rate | 0.37 GPM |
| Model | SoloTech |
| Outlet Size | 2 in (50.8 mm, 5.08 cm) |
| Overall Height | 20 in (508 mm, 51 cm) |
| Overall Length | 34.4 in (874 mm, 87 cm) |
| Overall Width | 23.3 in (592 mm, 59 cm) |
| Power Rating | 0.5 HP (0.37 kW) |
| Series | h32 |
| Housing Material | Powder Coated Aluminum |
| Lubricant Material | FDA Glycerin |
| Maximum Pump Speed | 11.32 RPM |
| Minimum Pump Speed | 1.9 RPM |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Minimum Temperature | 14 °F (-10 °C) |
| UPC | 769946205206 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
