Graco

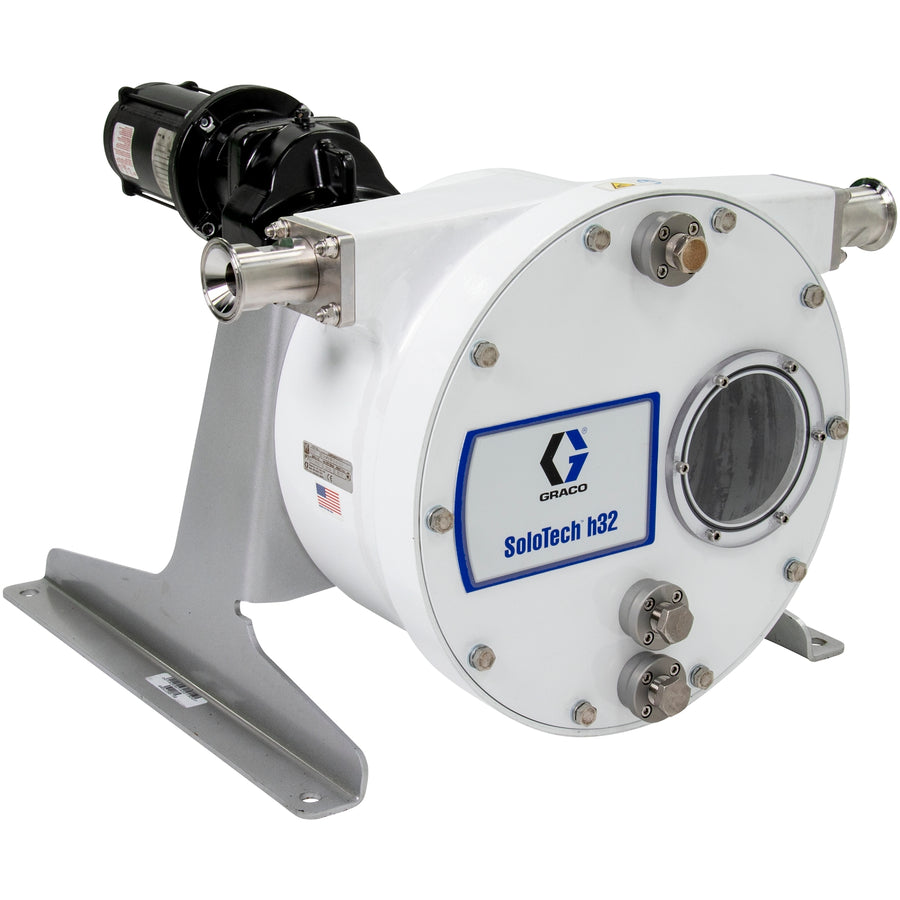

Graco SoloTech™ h32 Peristaltic Pump, 2.2 hp BLDC motor with gear reducer, .5-18 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb — 19D079
- OEM / SKU
- 19D079
- Part category
- Peristaltic Pumps
- Availability
- Est. factory ship Jan 7 – Jan 14
Price
$16,140.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 19D079
SoloTech™ h32 Peristaltic Pump, 2.2 hp BLDC motor with gear reducer, .5-18 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb
Graco catalog description: SOLOTECH ST32 PUMP,H32-MPM-FG-SS-A1-A1-0
Product group: SoloTech Peristaltic Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 19D079
Documents Graco lists for part number 19D079.
- Instruction Manual SoloTech™ Peristaltic Pumps, Installation and Operation 334859U
- Parts / Repair Manual SoloTech™ Peristaltic Pumps, Repair and Parts 3A3367N
- Brochure 3H0005EN-C Solotech Brochure 3H0005
- Safety Data Sheet MobilGrease XHP 222, Safety Data Sheet MSD131
- Safety Data Sheet Food Grade Glycerin Hose Pump Lubricant, Safety Data Sheet MSD132EN
Specifications
| Maximum Operating Temperature | 104 °F (40 °C) |
|---|---|
| Maximum Fluid Pressure | 125 psi (8.6 bar, 861.8 kPa) |
| Maximum Flow Rate | 67.11 L/min (4026.91 L/h, 1063.8 GPH) |
| Model | SoloTech |
| Lubricant Material | FDA Glycerin |
| Inlet Size | 2 in (50.8 mm, 5.08 cm) |
| Housing Material | Powder Coated Aluminum |
| Hose Diameter | 1.26 in (32 mm, 3.2 cm) |
| Gear Ratio | 38.67:1 |
| Maximum Pump Speed | 90 RPM |
| Minimum Flow Rate | 0.46 GPM |
| Minimum Pump Speed | 2.3 RPM |
| Outlet Size | 2 in (50.8 mm, 5.08 cm) |
| Overall Height | 18.5 in (470 mm, 47 cm) |
| Overall Length | 40.4 in (1026 mm, 103 cm) |
| Series | h32 |
| Voltage | 320 V dc |
| Overall Width | 23.3 in (592 mm, 59 cm) |
| Power Rating | 2.2 HP (1.6 kW) |
| UPC | 769946205176 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 42 × 36 × 29 in |
| Graco Shipping Weight | 310 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
